Medical image segmentation plays a crucial role in diagnosing and modeling anatomical and functional structures of organs. Region-based segmentation methods, especially clustering techniques like K-Means, Fuzzy C-Means, Expectation Maximization, and Histogram Quantization, are widely used due to their adaptability across various imaging modalities. However, segmentation outcomes vary depending on the clustering method and parameters used, making reproducibility a challenge. To address this, the MIS-U Imaging and Clustering Suite is introduced—a versatile software tool for visualizing, clustering, segmenting, and exporting medical imaging data, with a particular emphasis on diffusion tensor imaging (DTI). The suite includes dedicated utilities for image clustering, anatomical segmentation using binary layers, and exporting data for simulation and analysis. By standardizing the preprocessing and clustering workflow and incorporating advanced concepts like Unistable and Unistable 3D representations, MIS-U provides a consistent, flexible environment for medical image segmentation and modeling tasks

The diagnosis and modeling of the anatomy and function of various organs are significantly impacted by the segmentation of medical images. Either region-based, boundary-based, or hybrid approaches can be used to complete the segmentation. While some studies use hybrid or boundary- based approaches, particularly the level-set approach, region-based approaches are significantly more common in the segmentation of medical pictures [1, 2]. Clustering techniques like Histogram Quantization [3], K-Means [4], Fuzzy C-Means (FCM) [5], Expectation Maximization (EM) [6], or basic manual thresholding are the foundation of region-based methods. The picture segmentation process makes extensive use of Markov Random Fields (MRF) and its models, such as Iterated Conditional Modes (ICM) [1, 2, 7]. One noteworthy aspect of the segmentation problem is that the results of the segmentation process will vary depending on the number of clusters and the clustering technique utilized; therefore, there is no one-size-fits-all solution [1, 2, 7]. By creating universal and stable images [8, 9] from the original photos, two techniques have been devised to lessen the impact of that issue. As a consequence, the results will be almost same whether using different clustering algorithms and/or different numbers of clusters. Details of a novel tool that generates personalized segmentation of a medical imaging scan are presented in this publication

The MIS-U Imaging and Clustering Suite [10] is a comprehensive software application designed for the visualization, clustering, segmentation, and export of medical imaging data, particularly focusing on diffusion tensor imaging (DTI) [11] and other scalar-valued modalities such as MRI, X- Ray, CT, FLAIR, PET and MRA [12]. The software offers a user-friendly interface that begins with the main form, the Image Clustering Utility, where users can load either a MIS-U file or a series of standard image files (BMP, PNG, and JPG). When a MIS-U file is loaded, the software automatically detects the modality and provides appropriate scalar indices: DTI scans grant access to multiple scalar indices (e.g., FA, MD) [8, 9, 13, 14] and advanced constructs like Unistable [8] and Unistable 3D [9], while other modalities expose only magnitude images and basic Unistable features. Once an image is selected, users can apply various clustering algorithms, such as thresholding, Histogram Quantization [3], K-Means [4], Fuzzy C-Means (FCM) [5], expectation maximization (EM) [6], or iterated conditional mode (ICM) [7], to cluster the image into distinct tissue classes or structural regions. Each clustered result can be visualized alongside the original image, with clear labeling and cluster distribution statistics. Users can export these results as histograms in CSV format, segmentation masks in binary (.BIN) format, or save image slices as high-resolution PNGs in 1x1, 2x2, 3x3, or 4x4 grid layouts. The Image Segmentation Utility builds upon this by allowing users to combine up to three binary segmentation layers (e.g., WM, GM, CSF) to construct complex anatomical models. Through a layer-based interface, users can dynamically include or exclude clusters from each layer, enabling precise control over tissue representation. The final results can be exported for use in advanced simulation utilities such as brain excitation propagation or tumor growth modeling. Complementing these tools is the File Exporter Utility, which allows users to generate MIS-U files from raw DTI data (exported using MRI Studio), including eigenvalue and eigenvector files. It also supports scalar image data, where sequentially named slices are processed automatically to generate Unistable and Unistable 3D representations. The software manages all outputs in structured folders, ensuring organized data handling, and provides an end-to-end pipeline from raw imaging input to processed, analyzable, and export-ready data, making it ideal for both research environments and medical imaging applications.

3.1.Image Clustering Utility

Loading the File: Image Clustering Utility is the main form (Figure 1) of the application. Just load MIS-U file or any Image files (BMP, PNG, JPG) and then you are ready to go.

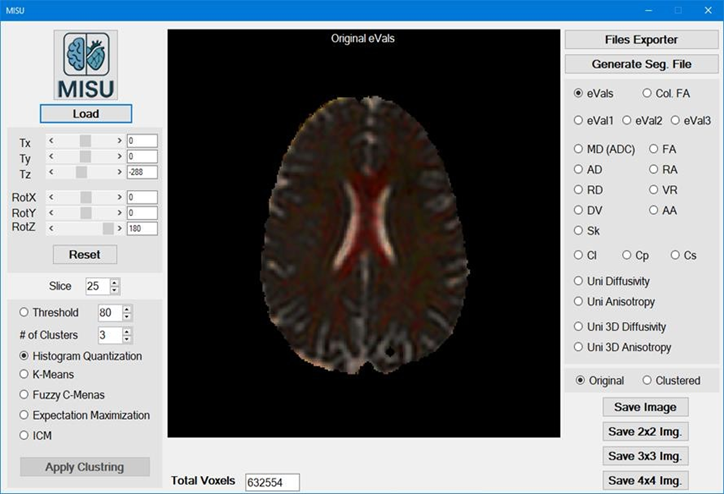

Figure 1: Main Form of MIS-U application showing the original image view.

When loading MIS-U file: For DTI modality, all Scalar Indices (SI) + Unistable and Unistable 3D are included, however for other modalities (MRI, CT, Flair … etc.) only magnitude, Unistable and Unistable 3D would be available.

When Loading Image File: Only magnitude will be available.

Clustering Algorithms: According to the selected image, Clustering algorithm can be applied.

You can select simple threshold clustering or use one of the following clustering algorithms:

•               Histogram Quantization

•               K-Means

•               Fuzzy C-Means (FCM)

•               Expectation Maximization (EM)

•               Iterated Conditional Mode (ICM)

Just specify the algorithm and the required number of clusters and click the button.

You can switch between the original image view and the clustered image view (Figure 2). In the clustered image view, the detailed title of the image is displayed at the top of the image and counting of each cluster is displayed at the bottom of the image.

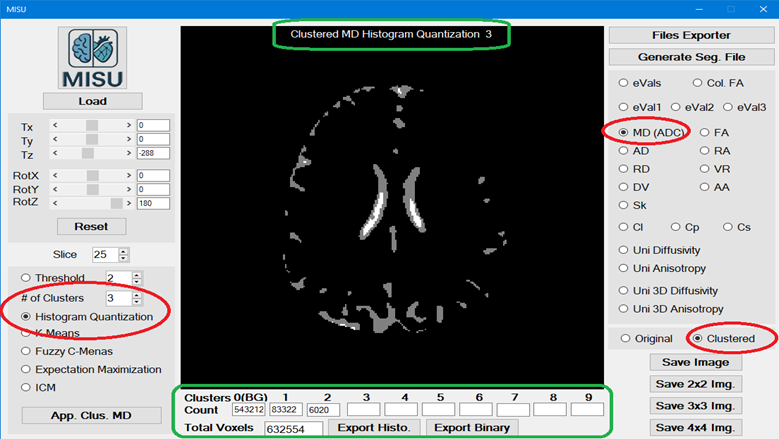

Figure 2: Main Form of MIS-U application showing a Clustered image view.

Export Histogram (Clustered Image): Will export those statistics to CSV file (to be used by Excel)

Export Binary (Clustered Image): Will export the binary file of the segmentation, where the .BIN file will be used in the segmentation process.

Save Image (Original Image / Clustered Image): Save only the current image to a PNG file (Figure 3). The name of the file will be the detailed title of the image.

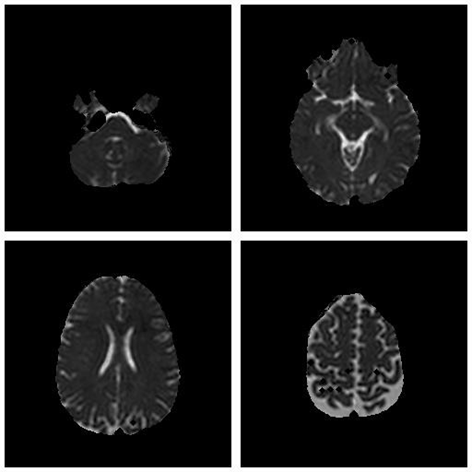

Figure 4: 2x2 Image Result.

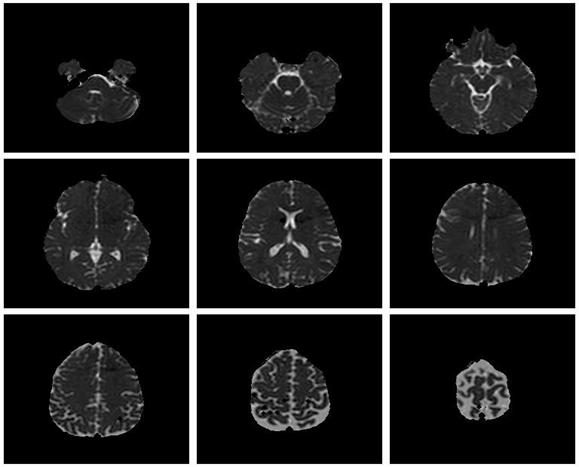

Save Image 3x3 (Original Image / Clustered Image): Save 9 slices of the scan to a PNG file (Figure 5). The name of the file will be the detailed title of the image 3x3.

Generate the WM/non-WM file: Select FA, apply Histogram Quantization with 3 clusters, and save the binary file of the clustered image.

•               Generate the CSF/non-CSF file: Select MD, apply Histogram Quantization with 3 clusters, and save the binary file of the clustered image.

•               Generate the entire tissues file (GM is non-WM and non-CSF): Select MD, apply Threshold clustering with value 2, and save the binary file of the threshold image.

In the Segmentation Utility do the following (Figure 7):

•               Load WM/non-WM file as Layer 1 (Top Layer), CSF/non-CSF file as Layer 2 and            the entire tissues file as layer

 •              Once you unselect one of the clusters check boxes, the cluster will not be included in the layer and its space will be available for the other lower layers.

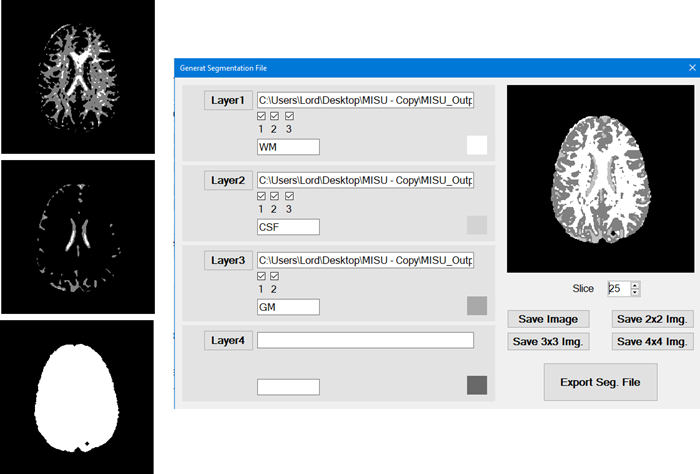

Figure 7: Segmentation Utility Example (WM, GM and CSF).

Once again, “Images Export” buttons are available with the same manner as the clustering utility. You can export the segmentation file for further modeling (Brain or heart excitation propagation utility and Tumor growth simulation utility which will be soon available on GitHub).

3.3.          File Exporter

You can generate the following using this utility:

•               The MIS-U file

•               Unistable File(s)

•               Unistable 3D File(s)

•               The Mask file of the MIS-U file (based on manual removal of undesired tissues)

Sample Brain file is included in the program folder “MIS-U_Input”

Figure 8: Tensor-Valued Modality Exporter Interface.

For Tensor-Valued scans (Figure 8):

•               Used MRI Studio Software (https://www.mristudio.org/) to export eigenvector and eigenvalue data that derived from diffusion tensor imaging (DTI) as raw binary files.

o              eigenvalue files are (e1, e2, and e3)

o              eigenvector files are (ev1, ev2, and ev3)

•               eVec1, Mask Uni D, Uni A, Uni3d D and Uni3D A are optional (but also recommended)

•               Dimensions and Scales SHOULD be specified by the user as eigenvalue files (which are exported by DTI Studio) contains raw data

•               Once you specify eVal1, eVal2 and eVal3, you can export the Unistable and Unistable 3D files.

•               The Mask can be generated by the Scalar-Valued scans option first and then it can be used here.

Figure 9: Scalar-Valued Modality Exporter Interface.

For Scalar-Valued scans such as MRI/CT/FLAIR/PET/MRA/X-Ray (Figure 9):

•               The files should be stored as image files (BMP, PNG or JPG)

•               The order of the Slices of the scan depends on the order of the image files Name.

•               You select the folder that contains the images and everything will be done automatically.

•               Dimensions will be detected automatically but the Scales are still required to be entered by the user.

The MIS-U Imaging and Clustering Suite offers a comprehensive and practical solution for medical image segmentation and clustering. It integrates multiple clustering algorithms and supports both scalar- and tensor-valued modalities, enabling users to generate customized anatomical segmentations with high flexibility. By automating complex steps such as DTI data handling and Unistable file generation, and allowing dynamic layer-based segmentation, MIS-U enhances the reproducibility and clarity of medical image analysis. The modular export functionalities further extend its usability to simulation platforms for brain activity or tumor modeling. This software serves as a valuable tool for researchers and clinicians seeking accurate and customizable segmentation workflows in diverse medical imaging contexts.
